Description

SPECIFICATIONS

Amplication: Class A

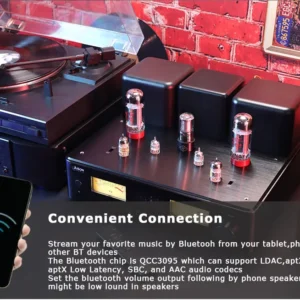

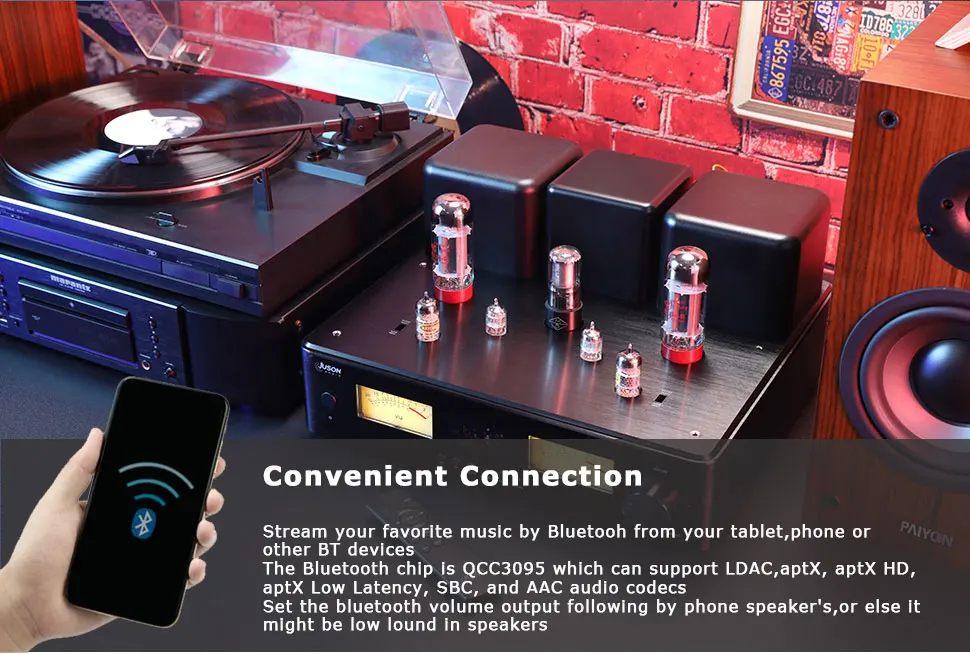

Blue tooth: version 5.4,Qualcomm QCC3095,support aptX, aptX HD,aptX Low Latency,SBC,and AAC audio codecs

Channel Separation: 70dB

Channels: 3 (2.1)

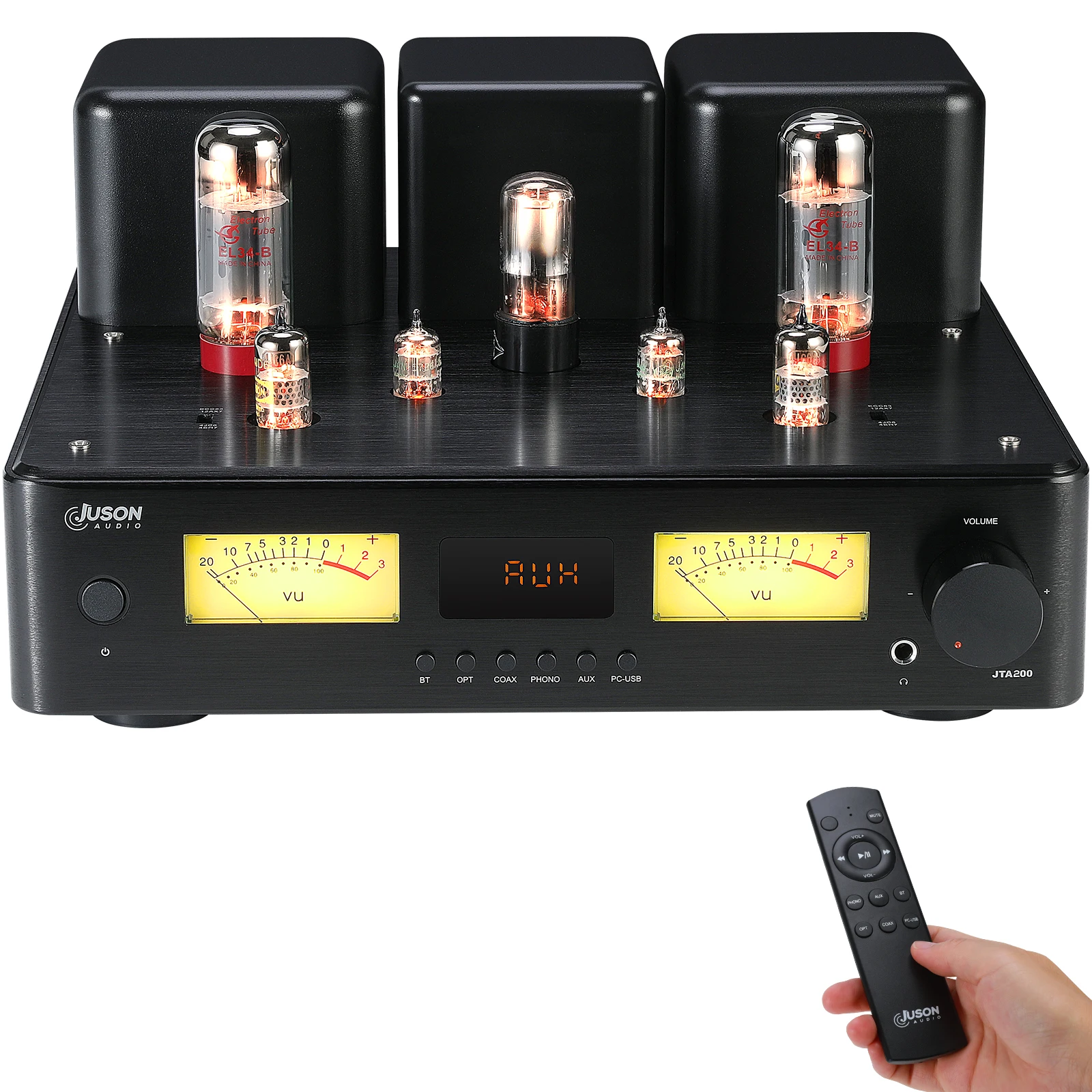

Control Method: Push button,Remote

Digital Inputs: SPDIF LPCM(up to 48kHz 16Bit,SPDIF LPCM(up to 48kHz 16Bit

Dimensions: 378*207*378mm

Dynamic Range: >90 dB

Frequency Response: 20-20,000Hz(1dB)

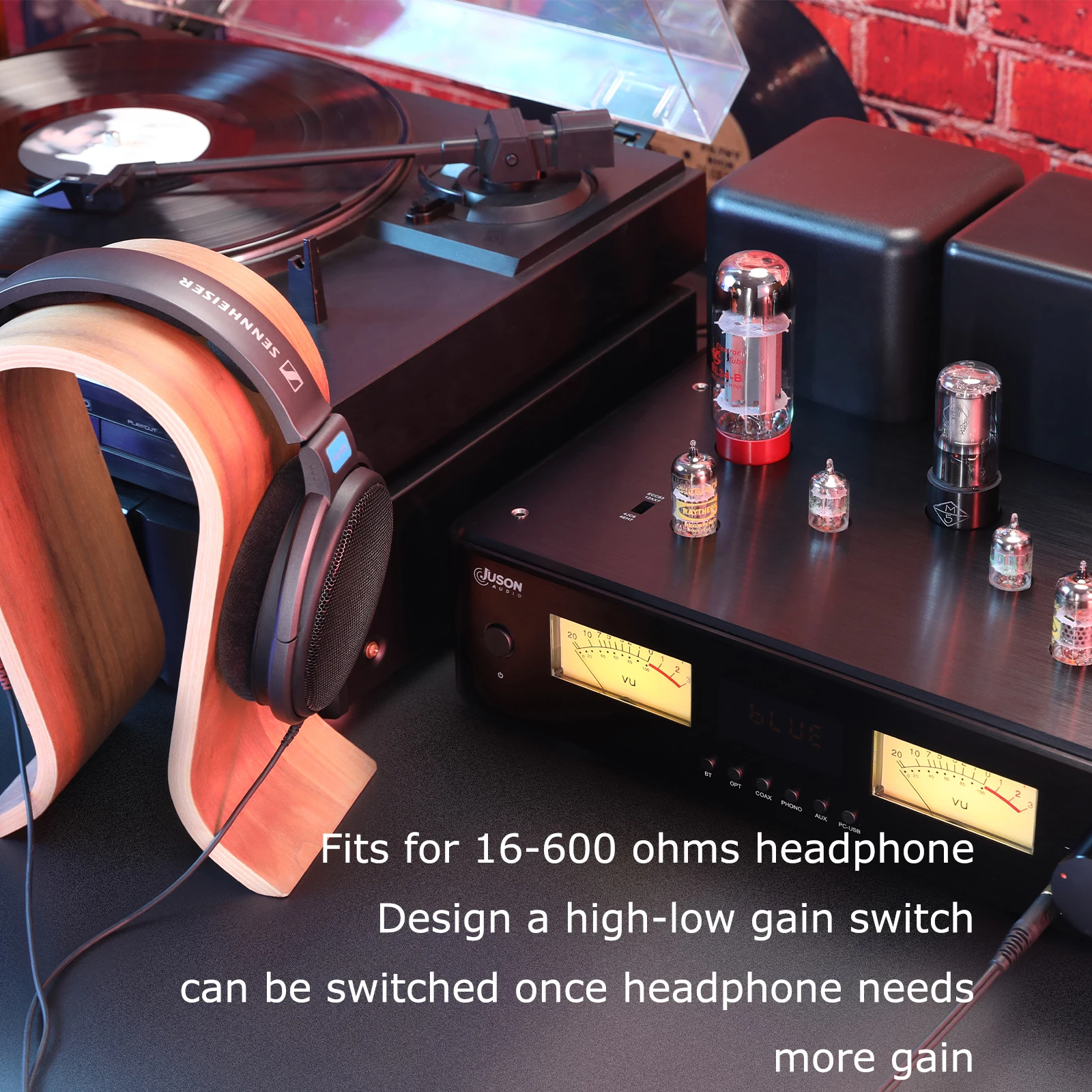

Headphone output: 130 mW x 2 @ 32 ohms ; 180 mW x 2 @ 300 ohms

Input Sensitivity: 600mV@32ohms

Inputs: Optical,Coaxial,Bluetooth 5.4,2X Stereo RCA,USB

MOSFET: K1058 x2,J162 x 2

Material: others

Maximum Power Output(Peak): 170W X 2@4 Ohm

Maximum Power Per Channel: 131-200W

Minimum Speaker Impedance: 4Ohm,4Ohm

Model Number: JTA200

Model number: JTA200

Output: Passive Speaker,Active subwoofer,headphone

PC-USB: Up to 48 kHz 16Bit,Up to 48 kHz 16Bit

Package: Yes

Power: 115/230 VAC,50/60 Hz Standard IEC Connection

Power Consumption: 400W

Preamp Stabilivolt Tubes: WY-4P

Preamplifier Tube: 4JC6*2+EL34 *2+6H2(5726) *2 tubes

RMS Power Output: 150W x 2 @4 Ohm

Signal to Noise Ratio: >90 dB

THD+N: 0.2% (@ 3W/1kHz,Rated Power output less than 5%)

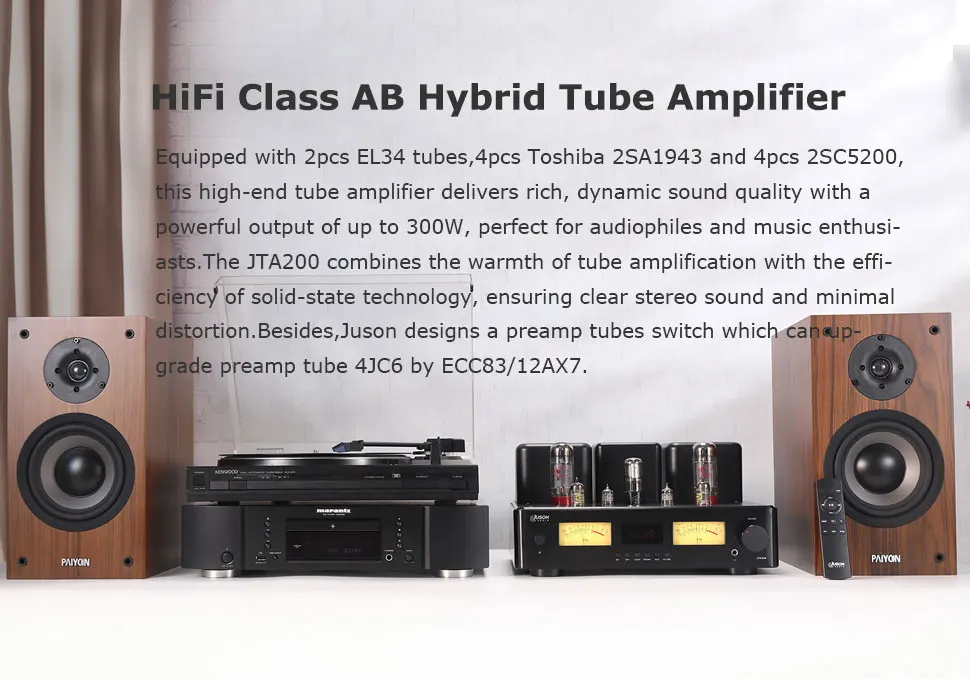

Trasistors: Toshiba 2SA1943 x4;Toshiba 2S C5200x4
